Building a compute cluster

Hardware

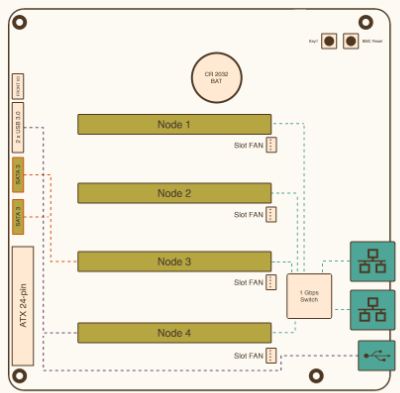

To keep things self contained and manage power consumption while I learn, I opted for the Turing Pi cluster board as my hardware platform for experimenting with cluster schedulers. As shown in the diagram to the right, the cluster board has four expansion slots for compute nodes all connected to an on-board ethernet switch. There are many options for compute boards including Raspberry Pi, Nvidia Jetson, and Turing's own RK1. I chose the RK1 since the price was competitive and there are no Raspberry Pi 5 compute modules yet.

The cpu layout of the RK1's Rockchip RK3588 SoC is heterogeneous. lscpu reports eight CPUs spread across three sockets. The four Cortex-A55 cores are on one socket and the four Cortex-A76 cores come in two pairs of two. This will cause some challenges configuring slurm.

The nodes are identical apart from their attached peripherals. Each node is powered from the same ATX power supply, connected to a dedicated m.2 ssd, has its own active cooler, and is configurable from the board management controller. Node 3 is unique since it is connected to two SATA 3 ports. This means that Node 3 will be our shared file server and control node. The others will be workers.

Operating System

Hardware obtained. On to the software starting with the operating system. Turing Pi provides documentation and an Ubuntu image for the boards. Using the web interface provided by the board management controller I flashed the operating system image to each node sequentially. Surprisingly painless as long a I remembered not to refresh the page.

With the operating system installed I ran a handful of manual steps to prepare the nodes as targets for my ansible playbook.

$ sudo su
# useradd -rm ansible
# echo "ansible ALL=(ALL) NOPASSWD:ALL" > /etc/sudoers.d/ansible
# chmod 440 /etc/sudoers.d/ansible
# mkdir -m 700 /home/ansible/.ssh
# echo "ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIO7kqBPUpVpPS4pTJXk5zQu2FMLZkNda2Q521btGCRDI" > /home/ansible/.ssh/authorized_keys
# chmod 600 /home/ansible/.ssh/authorized_keys
# chown -R ansible.ansible /home/ansible/.ssh
# exit
$ exit

Now we can use ansible to format and mount ssd for local scratch space. One bash script later and we are done.

#!/usr/bin/env bash

sudo lsblk -io NAME,TYPE,SIZE,MOUNTPOINT,FSTYPE,MODEL
sudo pvcreate /dev/nvme0n1
sudo vgcreate vgnfs /dev/nvme0n1
sudo vgs -v
sudo lvcreate -l 100%VG -n lvnfs vgnfs
sudo lvdisplay
sudo mkfs.ext4 /dev/vgnfs/lvnfs
sudo mkdir -p /mnt/bulk
sudo mount /dev/vgnfs/lvnfs /mnt/bulk
sudo df -H

sudo echo "/dev/mapper/vgnfs-lvnfs /mnt/bulk ext4 defaults 0 0" >> /etc/fstab

Slurm

Slurm is a cluster resource manager that allocates resources (CPU, Memory, GPU, ...) across multiple computers and manages contention between competing requests with a job queue. There are four main components we need to set up in order to have a functional cluster. Shared storage, authentication, workers, and job controller.

Shared Storage

Why shared storage? This way all nodes have access to the same file system and submitting jobs is "scp to node 3 and submit the job". Otherwise, the user would have to manually copy files to every node when the job starts. Undermining the entire goal of this setup.

The simplest way to create a shared file system is to use NFS. We will be using node3 to share a file system from the attached sata drives. We are also going to completely ignore multi-user permissions since I am the only user. fdisk, mkfs, and nfs-kernel-server are all that is needed on node 3. Then on every other node we need to add the network volume to fstab with echo "node3:/sharedfs /sharedfs nfs default 0 0" >> /etc/fstab.

Authentication

Slurm uses MUNGE to manage authentication between nodes in the cluster. Users of the cluster are already authenticated to the head node. Therefore, the cluster only needs a way to reliably encode this information and forward it to the workers. MUNGE uses a shared encryption key to securely transmit information between the nodes. The man page for MUNGE provides more details on the rationale and methodology. All we need to do is install munge, generate the key, copy the key to each node (conveniently reusing the shared file system we previously set up), and starting the daemon. Make sure that the permissions on the munge key are correct. Otherwise, the munged service will not start.

Workers

slurmd is the worker process. This is the agent that connects to the controller and runs jobs on a single node. Install the slurm-wlm apt package, configure the process, and start the service. Relatively straightfoward with a few steps I initially got tripped up with.

1. Every node, including the controller, should have the same configuration file.
2. Slurm has support for cgroups to isolate jobs on the worker nodes. This needs to be configured and explicitly list the allowed devices.
3. The node description needs to match the discovered hardware on the box. hwloc extracts the processor information and slurm compares the output to the config list. In my particular case, the processor is asymmetric which violates one of slurm's assumptions (number of cores is an integer multiple of the number of sockets). In the case of Intel processors with P- and E- cores there is an option to enable or disable ecores. No such option exists for the Rockchip procesors. So we need to tell slurm that the config takes precedence with SlurmdParameters=config_overrides.

Job Controller

Now that we have the workers configured the controller, slurmctld is trivial. Make sure the head node has the slurm-wlm apt package installed, copy the same configs, start the service. Once it is running you can check if everything is connected with sinfo.

$ sinfo
PARTITION AVAIL  TIMELIMIT  NODES  STATE NODELIST
workers*     up   infinite      3   idle node[1-2,4]

And then run a simple job to test that everything is working. Run hostname on 3 nodes.

$ srun --nodes=3 hostname
node4
node2
node1

What Next?

1. Run distributed Julia jobs on the cluster.
2. Repeat this process on the other computers in my house to build a compute cluster with more processing power than my laptop.
